PROJECTS
________________________________________________________________________________
RP2*** Micropython Apriltag Detection Port September 2024
Github
________________________________________________________________________________

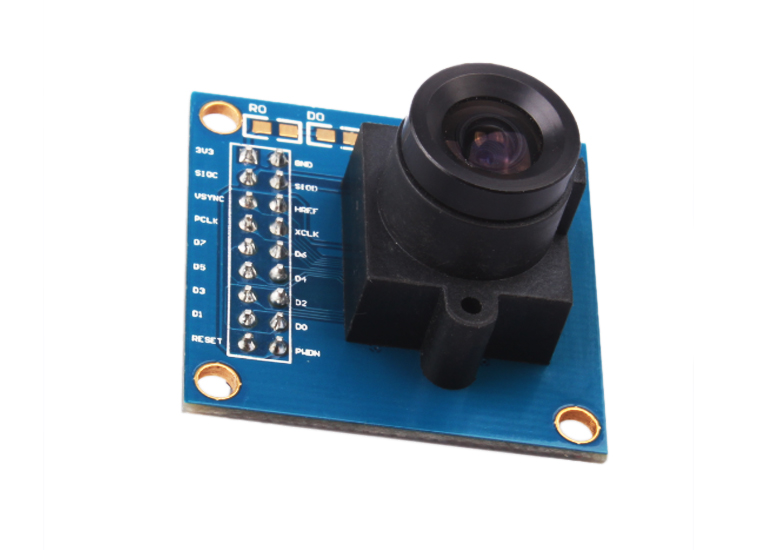

RP2*** Micropython OV7670 Camera Module Driver September 2024
Github
________________________________________________________________________________
Molecular Dynamics July 2024
Github
________________________________________________________________________________
MDL (Music Download) July 2024
Python script for downloading music from streaming sites. Uses yt-dlp.
Github
________________________________________________________________________________
clce (C Chess Engine) March 2024
**UNFINISHED**
A better chess engine. Featuring magic bitboards and lichess api support.
'clce' stand for C language chess engine and Chris Lang's chess engine.
Github
________________________________________________________________________________

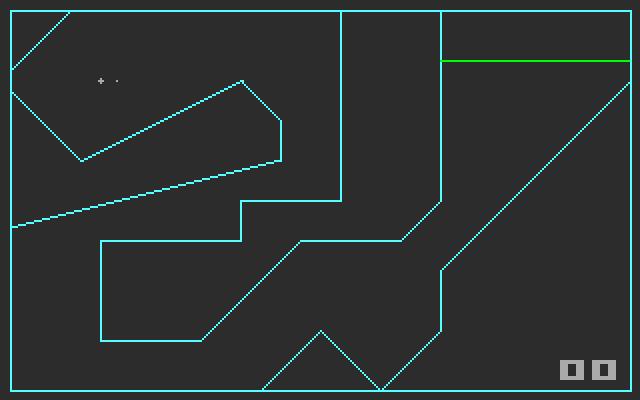

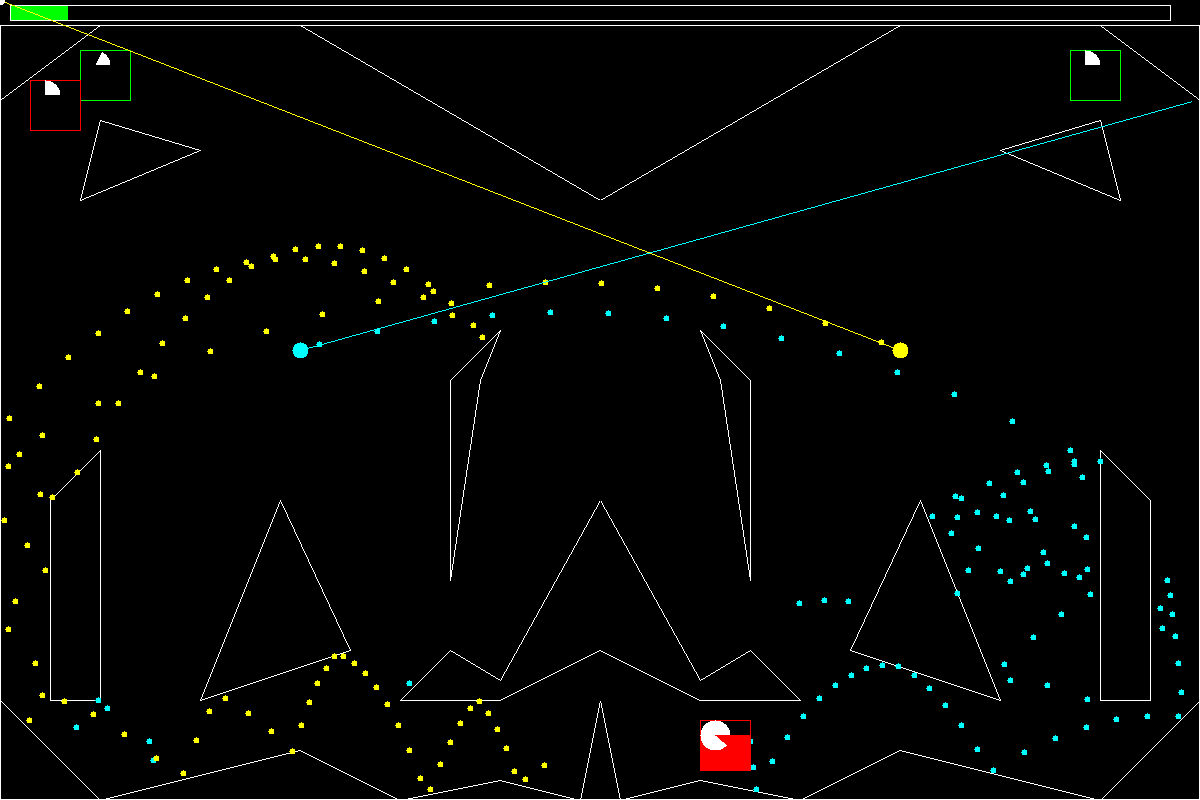

Dos 16-bit Assembly Video Game ('Lazer Recoil') Febuary 2024
Made in 48 hours for the 2024 Cambridge University Game Jam. The theme was
'reflections'. Runs in dosbox emulator.
Github
________________________________________________________________________________
ESP32-C3 Dev Board December 2023
Put together this development board for a RISC-V ESP32-C3 SOC.
________________________________________________________________________________

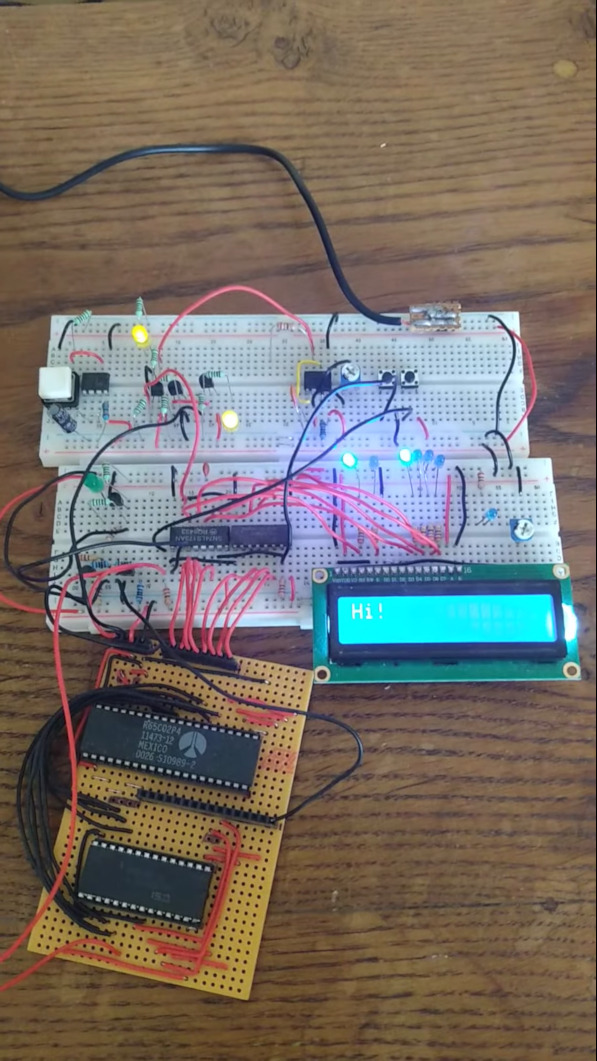

6502 Computer September 2023
65C02 microprocessor reads instructions from 28C256 memory and writes draw
instructions to an output interfaace register which connects to an LCD
character display.
Video
________________________________________________________________________________
mysmtp August 2023
Implemented SMTP client in C.
Github
________________________________________________________________________________
LIME Voxel Renderer April 2021 - July 2023
Experiments with novel 3D rendering techniques. Written with Vulkan and C.
Github
________________________________________________________________________________
PIFS OS Compilation Guide March 2023
Like LFS [1], but for cross-compiling a Raspberry-Pi OS. I wrote this guide
for my second EPQ.
* guide
* report
[1] LFS https://www.linuxfromscratch.org/lfs/
________________________________________________________________________________
Typewriter PDF Typesetting December 2022
This project can't really decide what it whants to be. The general idea is
that I want to convert text files to PDF files in some unspecified way but
I keep on changing my mind on the best way to do this. At various points in
time, my /bin/tw has been a symbolic link to: a C binary with no external
dependencies, a python script, a pearl script, an OCaml binary and a Bash
script.
Github
________________________________________________________________________________

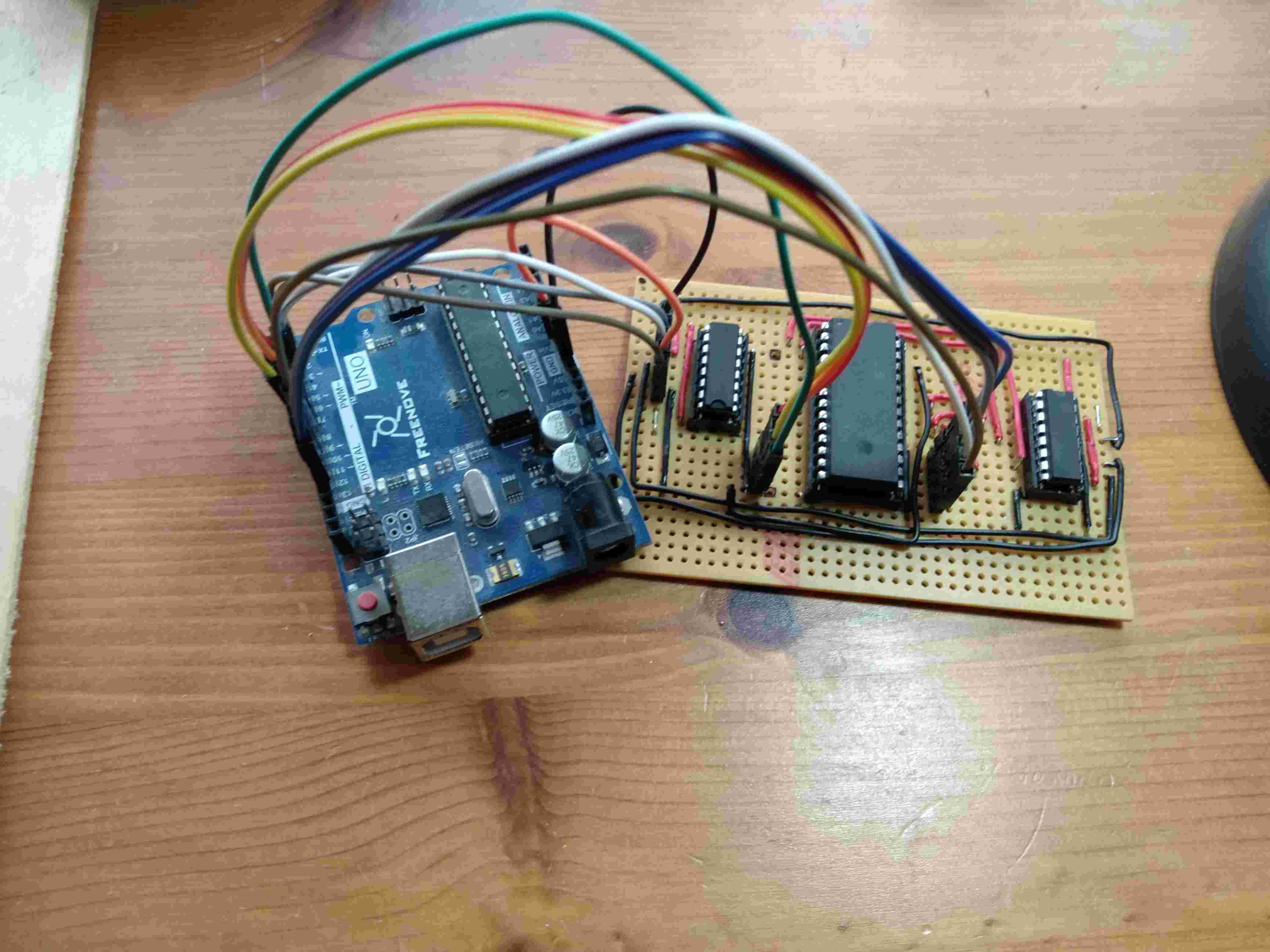

28C256 EEPROM Programmer June 2022
Data sent to an Arduino over USB interface, which in turn copies the data
onto the EEPROM. Made as part of my larger 6502 project.
Github
________________________________________________________________________________

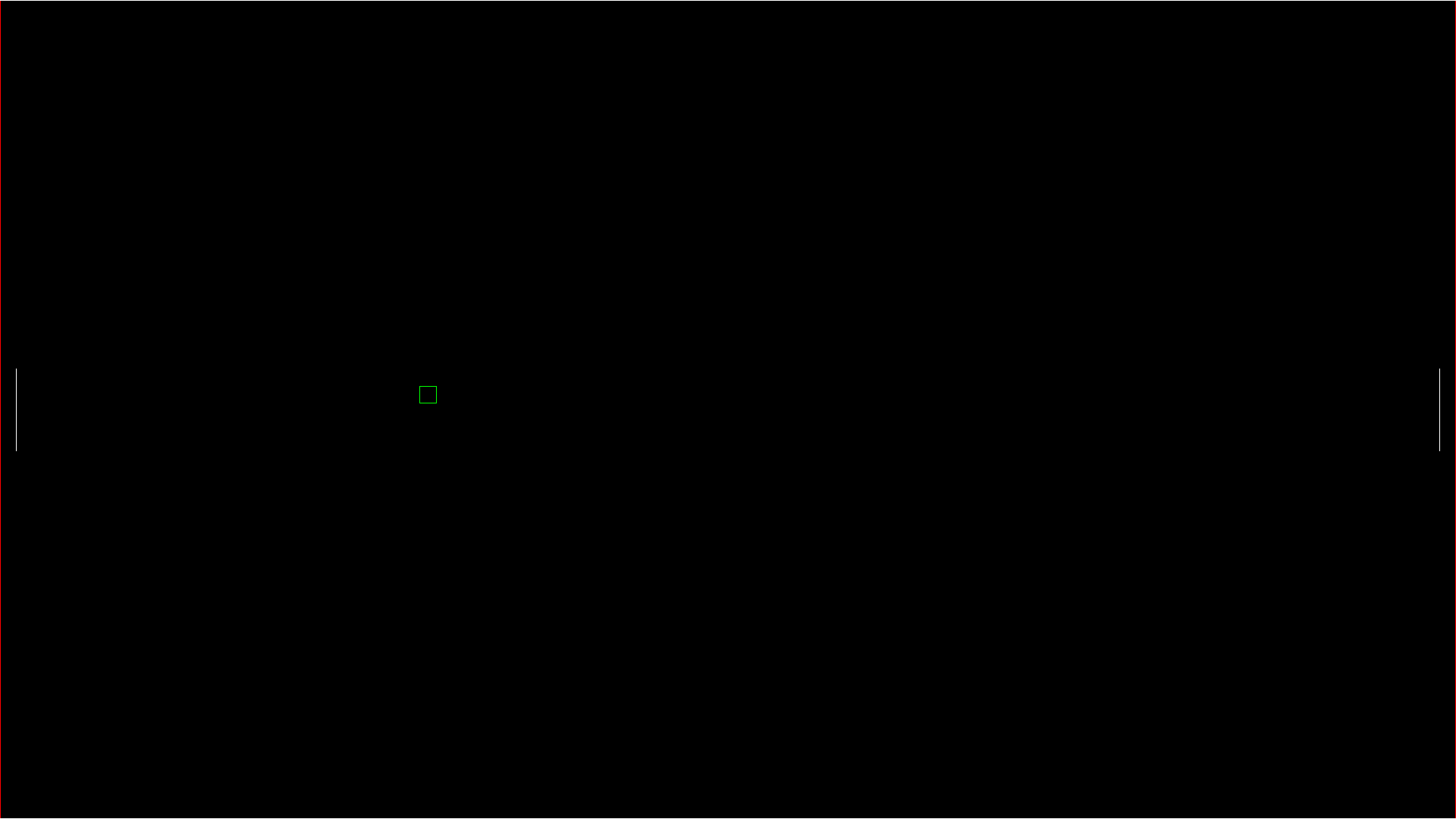

x86_64 Assembly Pong January 2022
Implementation of the video game 'Pong' in x86_64 assembly. Draws graphics
directly to Linux framebuffer at /dev/fb0. Reads keyboard input directly
from device files in /dev/input.
Github
________________________________________________________________________________
Billericay Food Bank App April 2021
I wrote this app for my local food bank. It helps communicate to patrons
which products are needed most. Due to flutter migration and App Store
difficulties, it's no longer being updated.
Google Play
App Store
________________________________________________________________________________
Rust Chess Engine October 2020
I wrote this chess engine for my first EPQ (a graded school project usually
done alongside A-Levels). Its chess.com elo is around 1300. Uses alpha-beta
pruned minimax search and endgame tables.
Github
________________________________________________________________________________
ESSAYS
________________________________________________________________________________
NA
________________________________________________________________________________
GUIDES
________________________________________________________________________________
Polymorphism in C December 2023
The other day I was reading the MuPDF source. I noticed an interesting
implementation of polymorphism, so I wrote the following code to
demonstrate. Notice that, using this method, no struct may implement more
than one interface.
When you use a polymorphic interface, you can't reason about the performance
implications of your function calls, as you do not know what the underlying
implementation is. In addition, polymorphic support makes the implementation
of a datastructure more complex. Polymorphism is only a good idea when the
flexibility granted outweighs the performance and complexity cost.
#include <stdarg.h>
#include <stdio.h>
#include <stdlib.h>
#include <time.h>
struct writer;
typedef void (writer_put_char_fn)(struct writer *, char);
typedef void (writer_printf_fn)(struct writer *, const char *format, va_list args);
typedef void (writer_destroy_fn)(struct writer *);
struct writer {
/* Shared attributes can be declared here. */
writer_put_char_fn *put_char;
writer_printf_fn *printf;
writer_destroy_fn *destroy;
};
struct file_writer {
struct writer super;
FILE *file;
};
struct string_writer {
struct writer super;
long length, allocated;
char *string;
};
void writer_put_char(struct writer *writer, char c);
void writer_printf(struct writer *writer, const char *format, ...);
void writer_destroy(struct writer *writer);
struct file_writer create_file_writer(const char *fname);
void file_writer_put_char(struct file_writer *writer, char c);
void file_writer_printf(struct file_writer *writer, const char *format, va_list args);
void file_writer_destroy(struct file_writer *writer);
struct string_writer create_string_writer(long allocate);
void string_writer_put_char(struct string_writer *writer, char c);
void string_writer_printf(struct string_writer *writer, const char *format, va_list args);
void string_writer_destroy(struct string_writer *writer);
void write_unix_time(struct writer *writer);
void
writer_put_char(struct writer *writer, char c)
{
writer->put_char(writer, c);
}
void
writer_printf(struct writer *writer, const char *format, ...)
{
va_list args;
va_start(args, format);
writer->printf(writer, format, args);
va_end(args);
}
void
writer_destroy(struct writer *writer)
{
writer->destroy(writer);
}
struct file_writer
create_file_writer(const char *fname)
{
struct file_writer writer;
writer.super.put_char = (writer_put_char_fn *)file_writer_put_char;
writer.super.printf = (writer_printf_fn *)file_writer_printf;
writer.super.destroy = (writer_destroy_fn *)file_writer_destroy;
writer.file = fopen(fname, "w");
return writer;
}
void
file_writer_put_char(struct file_writer *writer, char c)
{
fputc(c, writer->file);
}
void
file_writer_printf(struct file_writer *writer, const char *format, va_list args)
{
fprintf(writer->file, format, args);
}
void
file_writer_destroy(struct file_writer *writer)
{
fclose(writer->file);
}
struct string_writer
create_string_writer(long allocate)
{
struct string_writer writer;
writer.super.put_char = (writer_put_char_fn *)string_writer_put_char;
writer.super.printf = (writer_printf_fn *)string_writer_printf;
writer.super.destroy = (writer_destroy_fn *)string_writer_destroy;
writer.length = 0;
writer.allocated = allocate;
writer.string = malloc(allocate);
return writer;
}
void
string_writer_put_char(struct string_writer *writer, char c)
{
if (writer->allocated == writer->length) {
writer->allocated *= 2;
writer->string = realloc(writer->string, writer->allocated);
}
writer->string[writer->length++] = c;
}
void
string_writer_printf(struct string_writer *writer, const char *format, va_list args)
{
int len;
len = vsnprintf(writer->string + writer->length,
writer->allocated - writer->length, format, args);
if (len >= writer->allocated - writer->length) {
writer->allocated += len;
writer->allocated *= 2;
writer->string = realloc(writer->string, writer->allocated);
vsprintf(writer->string + writer->length, format, args);
}
writer->length += len;
}
void
string_writer_destroy(struct string_writer *writer)
{
free(writer->string);
}
void
write_unix_time(struct writer *writer)
{
int t;
t = (int)time(NULL);
writer_printf(writer, "seconds since Epoch: %d\n", t);
}
int
main(int argc, char *argv[])
{
struct file_writer file_writer;
struct string_writer string_writer;
file_writer = create_file_writer("time.txt");
string_writer = create_string_writer(1024);
write_unix_time((struct writer *)&file_writer);
write_unix_time((struct writer *)&string_writer);
printf("%s", string_writer.string);
writer_destroy((struct writer *)&file_writer);
writer_destroy((struct writer *)&string_writer);
}
________________________________________________________________________________
How to Manually Link a C Program February 2023
These are instruction to manually link object files to produce an
executable. Usually, GCC links C programs by automatically invoking ld in
response to a command such as gcc a.o b.o -o output. But this hides some
interesting stuff about how programs are linked, so for some fun, lets link
the object files ourselves.
First, in an empty directory, create main.c:
#include <stdio.h>
int
main(int argc, char **argv)
{
printf("hello world\n");
return 0;
}
Now compile the program to main.o. -c means not to run the linker:
gcc -c main.c
Lets try to (naively) link the program. ld is the name of the GNU linker and
its what GCC uses to link:
ld main.o -o output
We get the error messages:
ld: warning: cannot find entry symbol _start; defaulting to 000000000...
ld: main.o: in function `main':
main.c:(.text+0x1a): undefined reference to `puts'
The entry point to an elf file is the _start symbol but our C program only
has a main function. The solution is to link with the C runtime startup
code object file. This provides a _start symbol which will, among other
things, execute the main function. It is possible to avoid linking with the
C runtime startup code by specifying a _start symbol in your program source,
but that's beyond the scope of this guide.
We are also informed of an undefined reference to `puts'. This is because we
haven't linked with the standard C library which is used by the printf call.
I don't know why we are told undefined reference to `puts' and not undefined
reference to `printf'... Interesting, lets call it homework.
Lets run the linker again to reflect what we have learnt. link main.o, the C
runtime startup code and the C standard library.
ld main.o /lib/Scrt1.o -lc -o output
On your system, the path to the static C runtime startup code (Scrt) may be
different. To find out, run gcc main.o -v and grep the standard error output
for crt. This asks GCC to link for you in verbose mode so that you can see
what C runtime startup it uses.
The command should run without error. But when we try to execute ./output:
bash: ./output: No such file or directory
Weird, ./output definitely exists. Lets have a look at the headers of the elf:
$ readelf ./output -e
ELF Header:
Magic: 7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
Class: ELF64
...
INTERP 0x00000000000002e0 0x00000000004002e0 0x00000000004002e0
0x000000000000000f 0x000000000000000f R 0x1
[Requesting program interpreter: /lib/ld64.so.1]
...
Ah Ha! That program interpreter doesn't look right! Look at the headers of a
working binary on your system: readelf $(which bash) -e. You should see that it
uses an interpreter like /lib64/ld-linux-x86-64.so.2. As far as I understand,
ld-linux is like a newer version of ld64 and ld64 isn't installed on most
systems. Now lets construct our final link command:
$ ld main.o /lib/Scrt1.o -lc --dynamic-linker=/lib/ld-linux-x86-64.so.2 -o output
$ ./output
hello world
Hooray it works!
Further reading: How ELF binaries get run.
________________________________________________________________________________
Error Handling in C with the 'OR' Macro December 2022
I made this macro to make error handling code more readable.
#define OR ? (errno = 0) : (errno = errno ? errno : -1); if (errno)
Be sure to `#include <errno.h>`
Usage
Evaluate expression1, if equal to zero then set errno to 0 and execute
statement1. Otherwise set errno to -1.
expression1 OR statement1
Example Usage
Here is a simple example that catches a memory error.
int
main(int argc, char **argv)
{
char *memory;
(memory = malloc(10000)) OR goto memory_error;
return 0;
memory_error:
perror("failed to allocate memory");
return 1;
}
The two following code extracts show the same function except that the first
uses the OR macro and the second does not. This demonstrates how much more
readable using the OR macro is.
/* Error handling with 'OR' Macro. */
int
read_font_file(const char *fname, struct font_info *info)
{
int ret = 0;
long size;
FILE *file = NULL;
char *ttf = NULL;
(file = fopen(fname, "r")) OR goto file_error;
fseek(file, 0, SEEK_END) == 0 OR goto file_error;
(size = ftell(file)) >= 0 OR goto file_error;
fseek(file, 0, SEEK_SET) == 0 OR goto file_error;
(ttf = malloc(size)) OR goto allocation_error;
fread(ttf, 1, size, file) == size OR goto file_error;
read_ttf(ttf, size, info) == 0 OR goto ttf_error;
cleanup:
free(ttf);
if (file != NULL)
fclose(file);
return ret;
file_error:
fprintf(stderr, "file error in '%s': %s\n", fname, strerror(errno));
ret = 1;
goto cleanup;
allocation_error:
perror("failed to allocate memory");
ret = 1;
goto cleanup;
ttf_error:
fprintf(stderr, "failed to parse ttf '%s'\n", fname);
ret = 1;
goto cleanup;
}
/* Error Handling with IF statement. */
int
read_font_file(const char *fname, struct font_info *info)
{
int ret = 0;
long size;
FILE *file = NULL;
char *ttf = NULL;
file = fopen(fname, "r");
if (file == NULL) {
char *err = strerror(errno);
fprintf(stderr, "failed to open font file '%s': %s\n", fname, err);
ret = 1;
goto cleanup;
}
errno = 0;
fseek(file, 0, SEEK_END);
size = ftell(file);
fseek(file, 0, SEEK_SET);
if (errno) {
perror("failed to get length of file");
ret = 1;
goto cleanup;
}
ttf = malloc(size);
if (ttf == NULL) {
perror("malloc failed");
ret = 1;
goto cleanup;
}
if (fread(ttf, 1, size, file) != size) {
fprintf(stderr, "failed to read all bytes from file\n");
ret = 1;
goto cleanup;
}
if (read_ttf(ttf, size, info) != 0) {
fprintf(stderr, "failed to parse ttf\n");
ret = 1;
goto cleanup;
}
cleanup:
free(ttf);
if (file != NULL)
fclose(file);
return ret;
}
________________________________________________________________________________
LITERATURE
________________________________________________________________________________
The bourgeoisie, wherever it has got the upper hand, has put an end to
all feudal, patriarchal, idyllic relations. It has pitilessly torn asunder
the motley feudal ties that bound man to his "natural superiors", and has
left remaining no other nexus between man and man than naked selfinterest,
than callous "cash payment". It has drowned the most heavenly ecstasies of
religious fervour, of chivalrous enthusiasm, of philistine sentimentalism,
in the icy water of egotistical calculation. It has resolved personal worth
into exchange value, and in place of the numberless indefeasible chartered
freedoms, has set up that single, unconscionable freedom - Free Trade. In
one word, for exploitation, veiled by religious and political illusions,
it has substituted naked, shameless, direct, brutal exploitation.
- 1848, Karl Marx and Frederick Engels, translated by Samuel Moore,
Manifesto of the Communist Party
One of history's few iron laws is that luxuries tend to become necessities
and to spawn new obligations.
- 2015, Yuval Noah Harari, Sapiens
________________________________________________________________________________
christopher.lang.256@removethis.gmail.andthis.com
